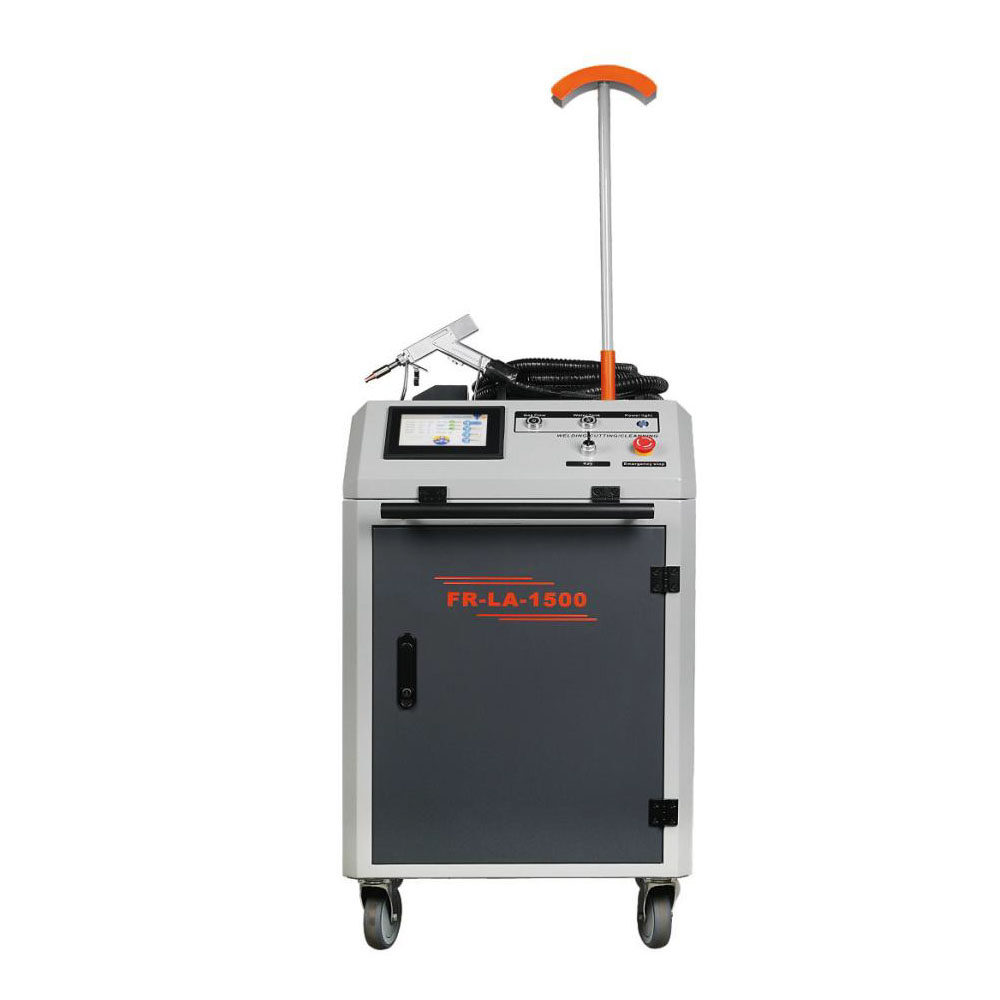

JL-FR-LA-1500C

■ High quality semiconductor laser and stable cooling system
■ Operation easy and get high cleaning speed and high quality
■ General staff can use it and no need special training
■ Light hand torch and with 10m original Fiber
■ Long life Acessories and save energy, lower use cost
■ Special safety protection function for operate worker
■ Laser model:continue or modulation
■ Laser wave length:1070nm
■ Cooling system:input/output temperature controled unit cooler
■ Special derusting control system

Description

Model Power Supply Rate Input Capacity (KVA) Rate Input Current(A) Laser power output power stability Collimating Focal Length Max mospheric Pressure Light spot. Adjustment Range Weight L*W*H(mm)
FR-LA-1000C 1*220V 50/60Hz 6 27 1000W 2% D16 F60mm 15Bar 0-300mm 160kg 900*600*980
FR-LA-1500C 1*220V 50/60Hz 8 36 1500W 2% D16 F60mm 15Bar 0-300mm 165kg 900*600*980
FR-LA-2000C 1*220V 50/60Hz 9 41 2000W 2% D16 F60mm 15Bar 0-300mm 170kg 900*600*980
FR-LA-3000C 3*380V 50/60Hz 13 20 3000W 2% D16 F60mm 15Bar 0-300mm 180kg 900*600*980
ACCESSORIES ■ Torch 10m ■ Protective glass
OPTIONAL ACCESSORIES
