■ High quality semiconductor laser and stable cooling system
■ The torch with special nozzle suit able for welding at different angle and position on the work piece
■ Operation easy and get high welding speed and high quality
■ The efficiency can be up 2-10times than TIG welding and economizeon manpower
■ General staff can use it and no need special training
■ You can fit wire by seperate wire feeder system
■ Light hand torch and with 10m original Fiber
■ Long life Acessories and save energy, lower use cost
■ Special safety protection function for welding worker
■ Laser wave length:1080nm
■ Cooling system:input/output temperature controled unit cooler
■ Welding materials:steel/stainless steel/aluminum/cooper
■ Multi functions:welding,cutting,derusting,weld seam cleaning
| Model | Power Supply | Rate Input Capacity (KVA) | Rate Input Current(A) | Laser power | output power stability | Welding depth of fusion | welding seam | Welding speed | Dia of wire | Weight | L*W*H(mm) |
| FR-LA-1000 | 1*220V 50/60Hz | 6 | 27 | 1000W | 2% | 0.5-2mm | ≤2mm | 0-120mm/s | 0.8,1.0 | 160kg | 900*600*980 |

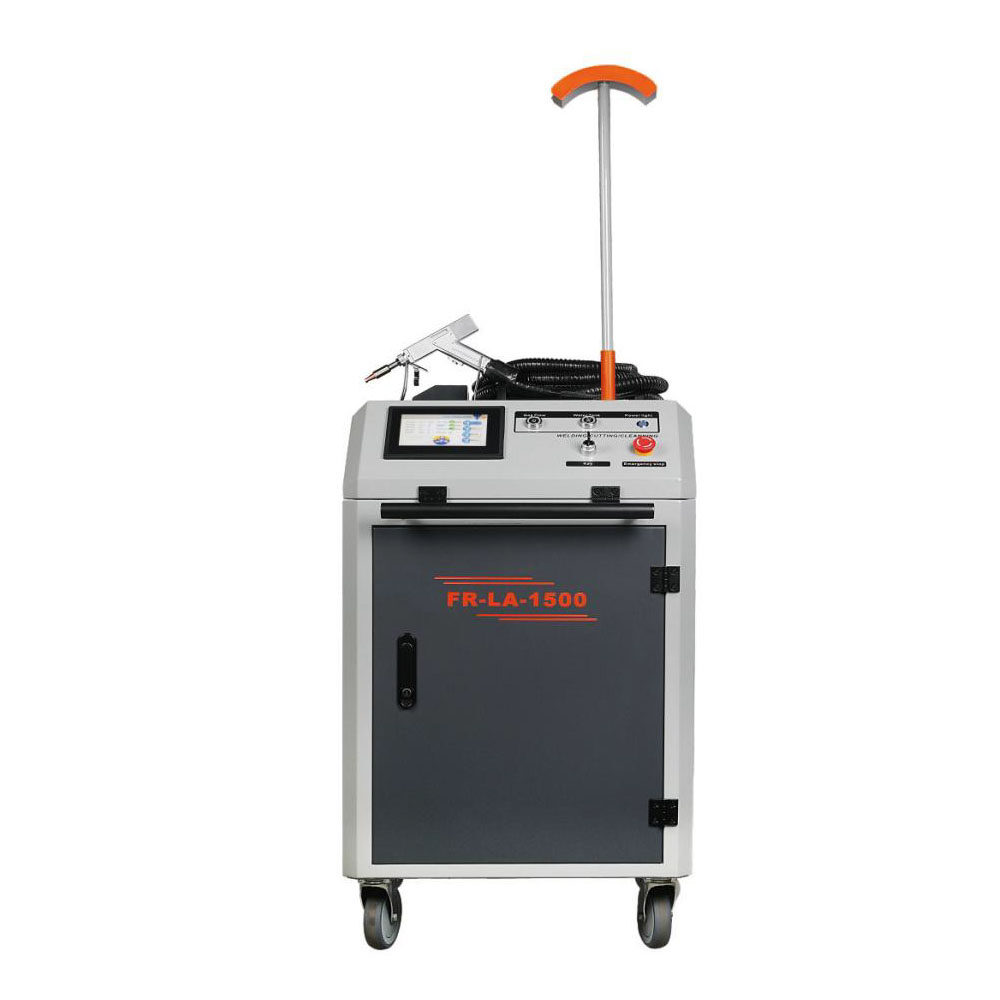

| FR-LA-1500 | 1*220V 50/60Hz | 8 | 36 | 1500W | 2% | 0.5-3mm | ≤3mm | 0-120mm/s | 0.8,1.0,1.2 | 165kg | 900*600*980 |
| FR-LA-2000 | 1*220V 50/60Hz | 9 | 41 | 2000W | 2% | 0.5-4mm | ≤4mm | 0-120mm/s | 0.8,1.0,1.2,1.6 | 170kg | 900*600*980 |
| FR-LA-3000 | 3*380V 50/60Hz | 13 | 20 | 3000W | 2% | 0.5-5mm | ≤5mm | 0-120mm/s | 0.8,1.0,1.2,1.6 | 180kg | 900*600*980 |
ACCESSORIES ■ Wire feeder ■ Torch 10m ■ Wire feeding hose ■ Protective glass ■ welding and cutting cleaning nozzles ■ wire feed rollers
 |
 |
 |
 |
 |
 |
OPTIONAL ACCESSORIES
■ Torch and system:SUP21S,SUP23T ■ Twin-wire feeder system
 |
 |
 |
Contact JL Industrial Supply Company Limited for High-quality Welding and Cutting Machine.
