■ High quality semiconductor laser and stable cooling system
■ The torch with special nozzle suit able for welding at different angle and position on the work piece
■ Operation easy and get high welding speed and high quality
■ The efficiency can be up 2-10times than TIG welding and economizeon manpower
■ General staff can use it and no need special training

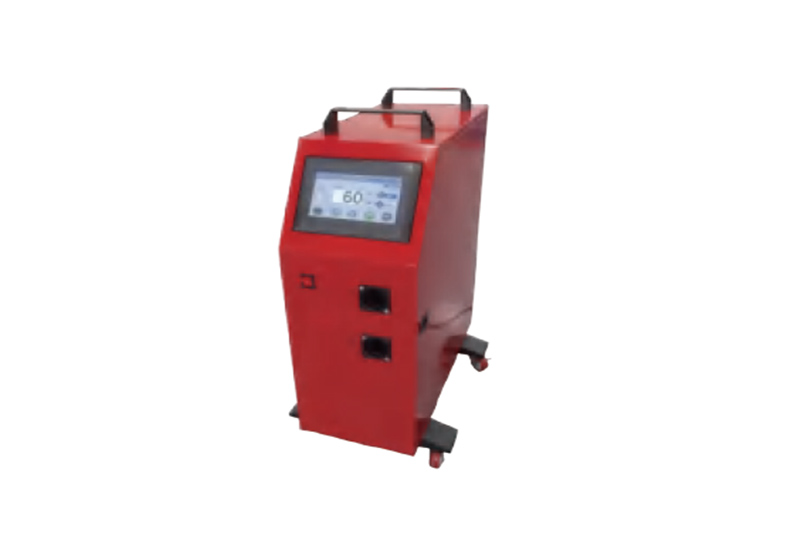

■ You can fit wire by seperate wire feeder system

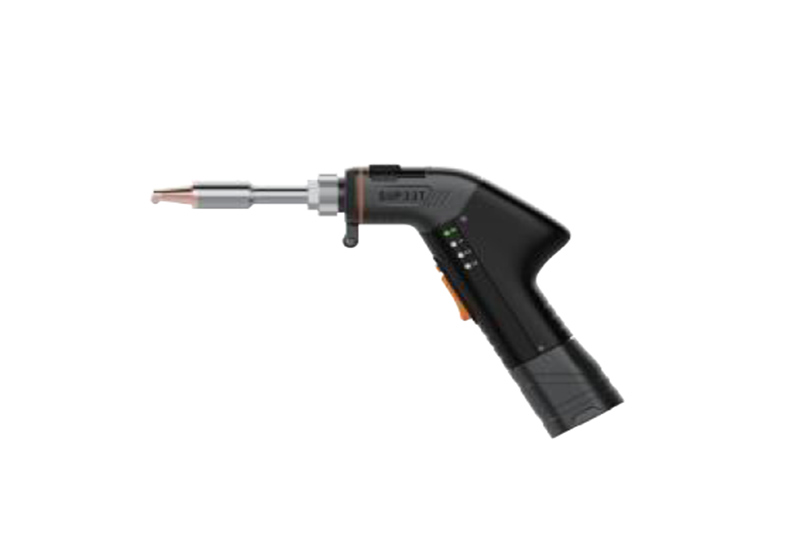

■ Light hand torch and with 5m original Fiber
■ Long life Acessories and save energy, lower use cost

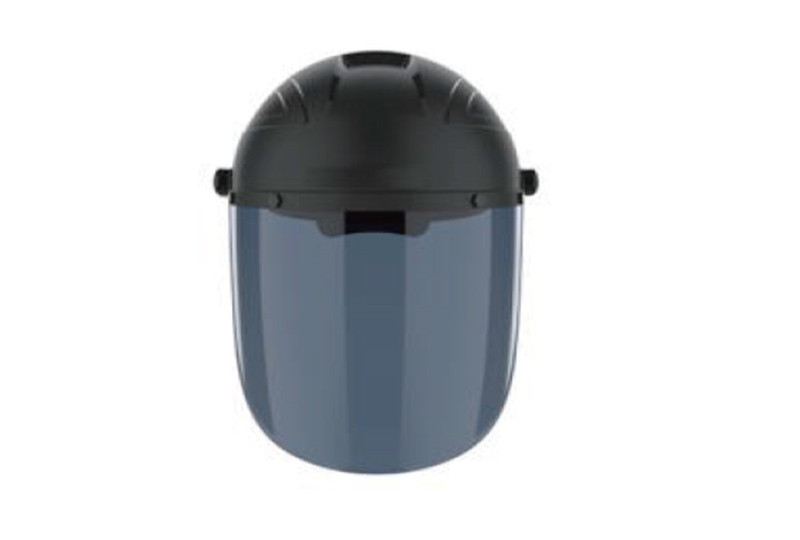

■ Special safety protection function for welding worker
■ Laser model:continue or modulation
■ Laser wave length:1080nm
■ Cooling system:Fan cooling
■ Welding materials:steel/stainless steel/aluminum/cooper
■ Multi functions:welding,cutting,derusting,weld seam cleaning

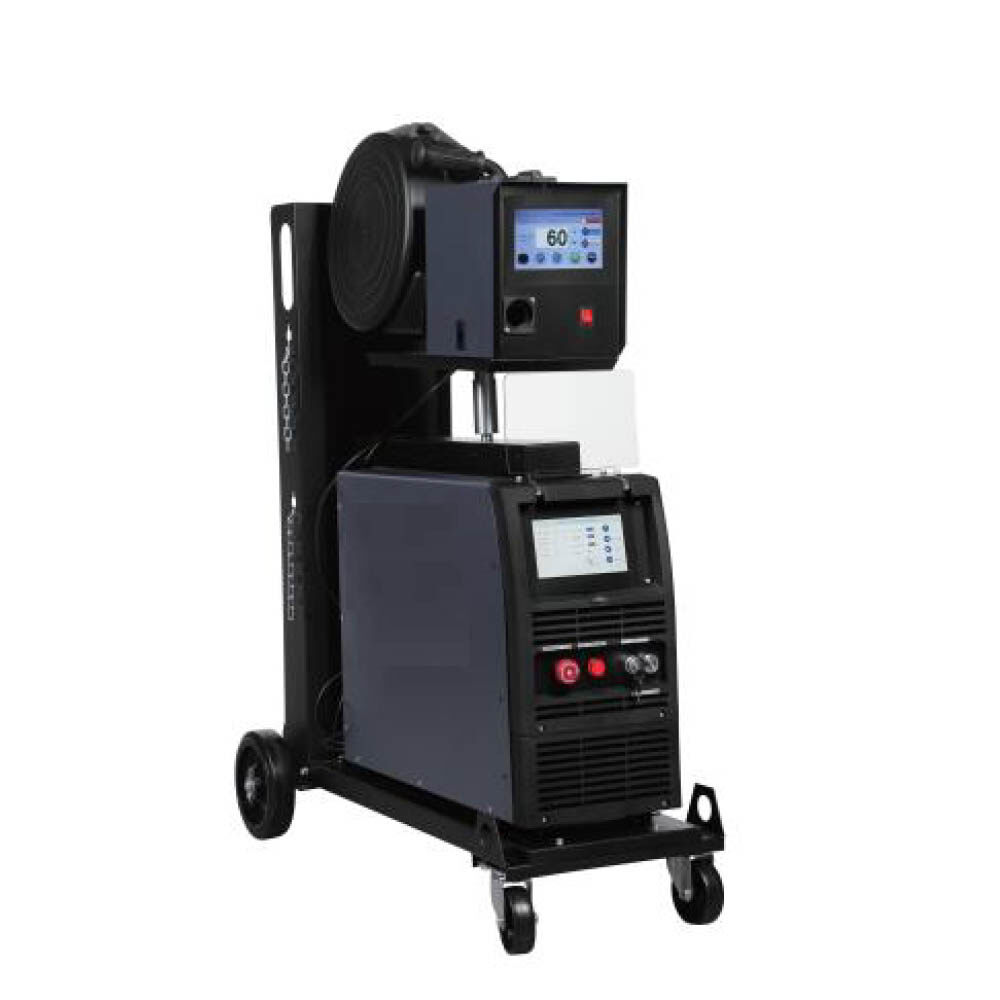

■ With trolley and can put gas cylinder and wire feeder on it, easy to moving
| Model | Power Supply | Rate Input Capacity (KVA) | Rate Input Current(A) | Laser power | output power stability | Welding depth of fusion | Laser spot range | Welding speed | Dia of wire | Weight | L*W*H(mm) |
| FR-LA-25E-1 | 1*220V 50/60Hz | 3.5 | 15 | 1200W | 2% | 0.5-3.0mm | 0-8mm | 0-120mm/s | 0.8,1.0 | 55kg | 665*270*610 |
| FR-LA-30E-1 | 1*220V 50/60Hz | 4.0 | 17 | 1500W | 2% | 0.5-4.0mm | 0-8mm | 0-120mm/s | 0.8,1.0,1.2 | 55kg | 665*270*610 |
| FR-LA-40E-1 | 1*220V 50/60Hz | 4.5 | 20 | 2000W | 2% | 0.5-5.0mm | 0-8mm | 0-120mm/s | 0.8,1.0,1.2,1.6 | 62kg | 665*270*610 |
ACCESSORIES ■ Wire feeder ■ Torch 5m ■ Wire feeding hose ■ Protective glass ■ welding and cutting cleaning nozzles ■ wire feed rollers
 |
 |
 |
 |
 |
 |
OPTIONAL ACCESSORIES
■ Torch and system:SUP21S,SUP23T ■ Twin-wire feeder system
 |
 |
 |
