JL-YC-PR03

JL-YC-PR03

This unit consists of PR03-Y protective hood and YC-PR03 powered air purifying respirator, it provides protection for the users’head, face, neck and shoulder.Eye and face protection upon EN166, eye and face protection against splash and impact upon grade F, same impact protection effect as glasses.

Description

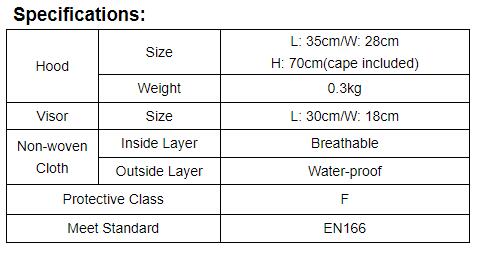

Descriptions of Hood:

PR03-Y protective hood provides protection for the users’head, face, neck and shoulder.Eye and face protection upon EN166, eye and face protection against splash and impact upon grade F, same impact protection effect as glasses.





Descriptions of Powered Air Purifying Respirator:

A complete powered respirator apparatus consists of :

◆Blower master unit, provided with a dust TH3filter, a steel pre-filter and an activated carbon filter (chart 1), supplied with a beltand a comfort plate.

◆Rechargeable battery, which is equipped underside theapparatus.

◆A hose with a bayonet connector to blower unit and a bayonet connector to mask,

◆Battery charger, fully automatic.



Spare parts list:

1.TH3filter

2.Pre-filter (stainless Steel wire mesh)

3.Activated carbon filter / Melt blown fabric filter

4.Rechargeable battery



 Technical parameters:

 Blower unit

Airflow:                    170 L/min,210L/min,250L/min

Motor Speed:         Electronically controlled

Alarms:                    Electronically controlled, for low flow and

Lowbattery

Material:                  Impact proof ABS

Color:                      Optional

Weight        :                 1080 grams (including battery and filter)

Dimensions LxWxH:  165x95x200mm

Filter

Filter class:                    TH3 P R SL

Material filter medium: Efficient filtering low resistance papers

Material support disks:ABS

Color:                      Black

Weight:                   90 grams

Dimension:DxH:       ø120x38mm

 Battery

Type:                        Lithium,rechargeable

Voltage:                   11.1 Volt

Capacity:                5200 mAh

Operating time:      about 8hrs

Charging time:              2h

Charging cycles:   ﹥500

Material case:        Impact proof ABS

Color:                      Black

Weight:                   350 grams

Dimensions:          137x50x72 mm

Battery charger

Type:                        Fully automatic, overcharge protection

Primary voltage:    100-240 v, 50/60 Hz

Secondary voltage:12.6 Volt

Color:                      Black

Weight:                   200 g

Dimensions:          110x48x30 mm

Hose

Length:            800 mm

Diameter(int):  35 mm

Connection:    Bayonets for blower unit and mask



Material:           PU
