■ IGBT Digital inverter DC MMA, DC PULSE TIG
■ Lift and HF for TIG
■ 32 bits MCU inside
■ Analog operation panel.

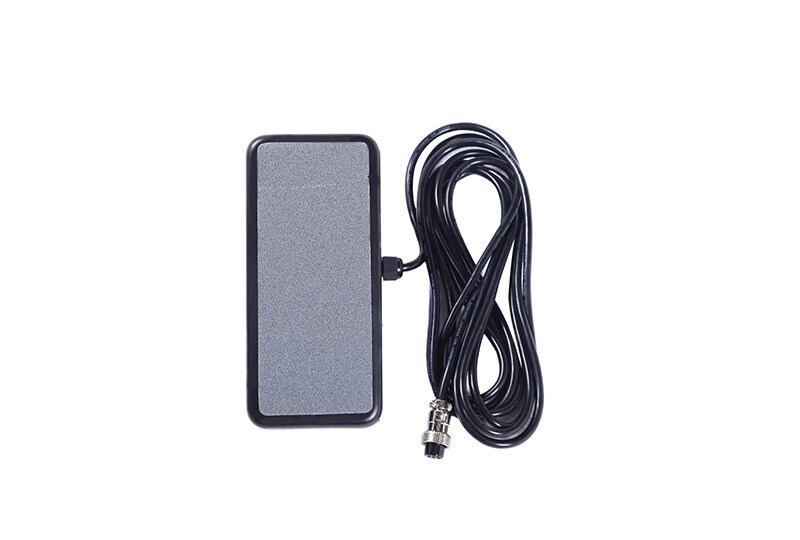

■ Foot pedal and finger amps remote control
■ 2T/4T function
■ Heavy duty cycle.
■ Singer phase power
| Model | PowerSupply Voltage | Rate Input Capacity (KVA) | Rate Input Current(A) | No Load Voltage | Output current Range | Duty Cycle | Weight | L*W*H(mm) | |
| TIG160PD | 1*230V 50/60Hz | 4.8 | 16.6 | 70 | TIG:5-160A, MMA:5-130A | 35% | 8.5kg | 340*165*290 | |
| TIG180PD | 1*230V 50/60Hz | 5.5 | 23.6 | 70 | TIG:3-180A, MMA:5-140A | 35% | 9kg | 340*165*290 | |
| TIG200PD | 1*230V 50/60Hz | 6.6 | 28.7 | 70 | TIG:5-200A, MMA:5-160A | 35% | 10kg | 390*165*290 | |
 |
 |
 |
 |
 |
 |
 |
Contact JL Industrial Supply Company Limited for High-quality Welding and Cutting Machine.
