■ High frequancy IGBT Digital inverter DC MMA,Pules DC TIG and CUT.
■ Lift and HF for TIG
■ HF or without HF pilot arc for Plasma cutting
■ 32 bits MCU inside
■ One knob digital style operation panel

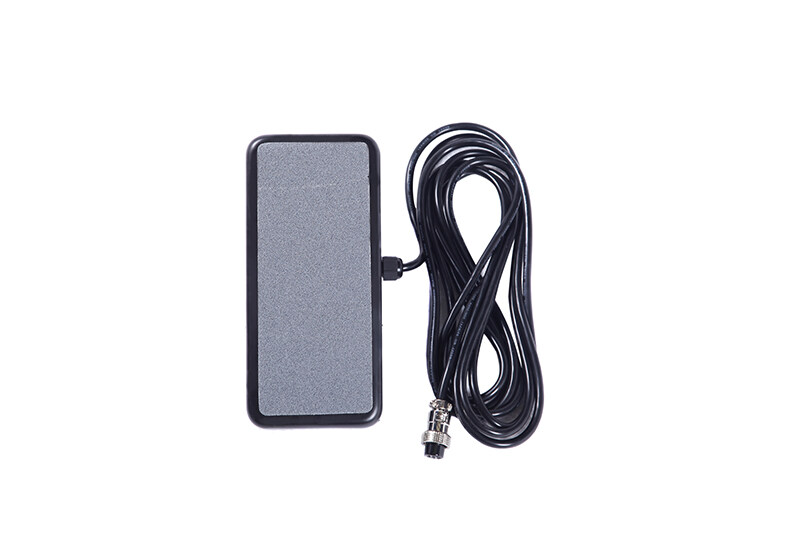

■ Foot pedal and finger amps remote control
■ 2T/4T function
■ 10 Memories
■ Low pilot current and high cutting quality
■ Full pulse parameters preset
| Model | PowerSupply Voltage | Rate Input Capacity (KVA) | Rate Input Current(A) | No Load Voltage | Output current Range | Duty Cycle | Max cutting thicknes | Weight | L*W*H(mm) | |
| TC205DP | 1*230V 50/60Hz | 7.5 | 32.1 | 65 | TIG:5-200A, MMA:10-160A，CUT:20-50A | 60% | 20mm | 16kg | 415*185*325 | |
| TC184DP | 1*230V 50/60Hz | 6 | 25 | 65 | TIG:5-180A, MMA:10-140A，CUT:20-40A | 60% | 15mm | 12kg | 415*185*325 | |
 |
 |
 |
 |
 |
 |
OPTIONAL ACCESSORIES
■ 110/220V dual voltage
 |
 |
 |
Contact JL Industrial Supply Company Limited for High-quality Welding and Cutting Machine.
