■ High frequancy IGBT inverter DC MMA,Pulse ACDC TIG and CUT.
■ Lift and HF for TIG
■ HF ARC start for plasma
■ 32 bits MCU inside
■ Analog and PVC sticker operation panel

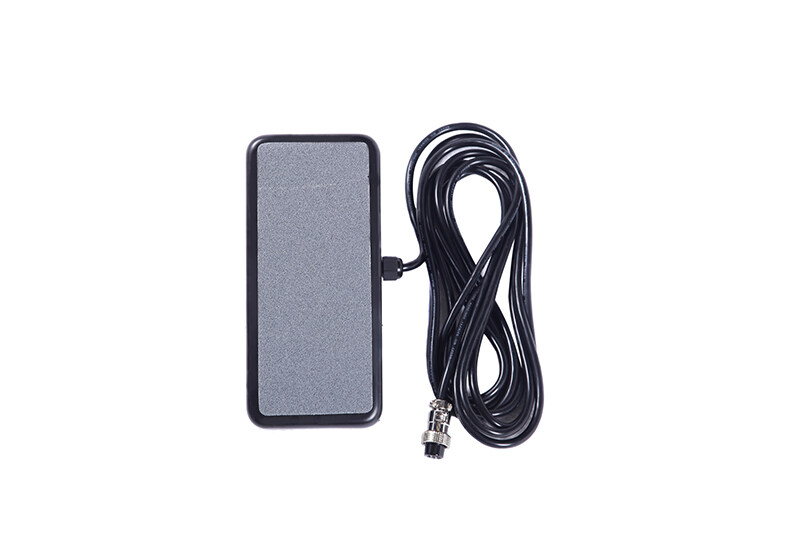

■ Foot pedal and finger amps remote control
■ 2T/4T function
■ Hot arc start and Arc force, Antistick for MMA
■ Current Down slope and gas post flow time adjustment
| Model | PowerSupply Voltage | Rate Input Capacity (KVA) | Rate Input Current | No Load Voltage | Output current Range | Duty Cycle | Max cutting thickness | Weight | L*W*H(mm) | |
| TC200ACDC | 1*230V 50/60Hz | 7.5 | 32.1 | 65 | TIG:5-200A, MMA:10-160A CUT:20-50A | 60% | 20mm | 16kg | 415*185*325 | |
 |
 |
 |
 |
 |
 |
■ 110/220 dual
 |
 |
 |
Contact JL Industrial Supply Company Limited for High-quality Welding and Cutting Machine.
