■ IGBT high frequancy inverter DC MMA
■ Single PCB style design.
■ Hot arc start and arc force and Anti-stick.
■ Lift Tig welding
■ Digital display.
| Model | PowerSupply Voltage | Rate Input Capacity (KVA) | Rate Input Current(A) No Load | No Load Voltage | Output current Range | Duty Cycle | Weight | L*W*H(mm) | |

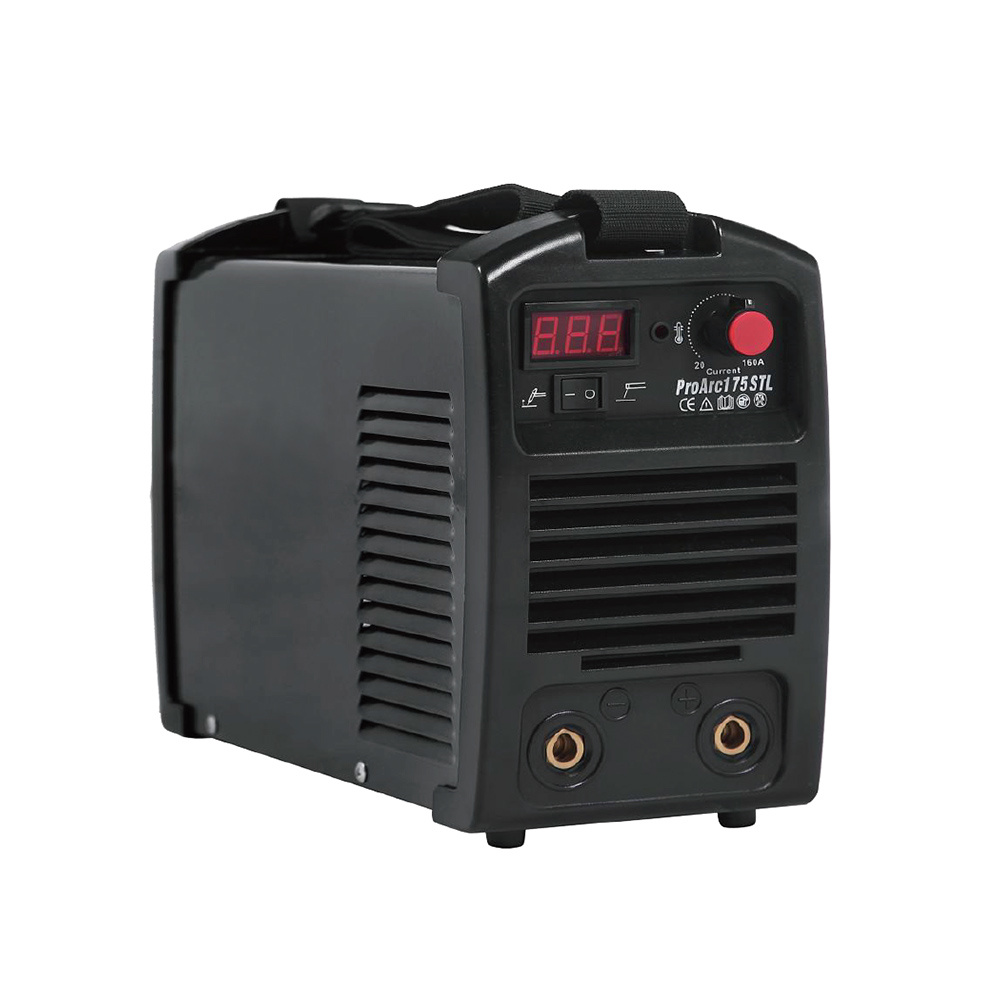

| ProArc135STL | 1*230V,50/60Hz | 4.5 | 20 | 83 | 15-135A | 35% | 4.2kg | 210*120*265 | |

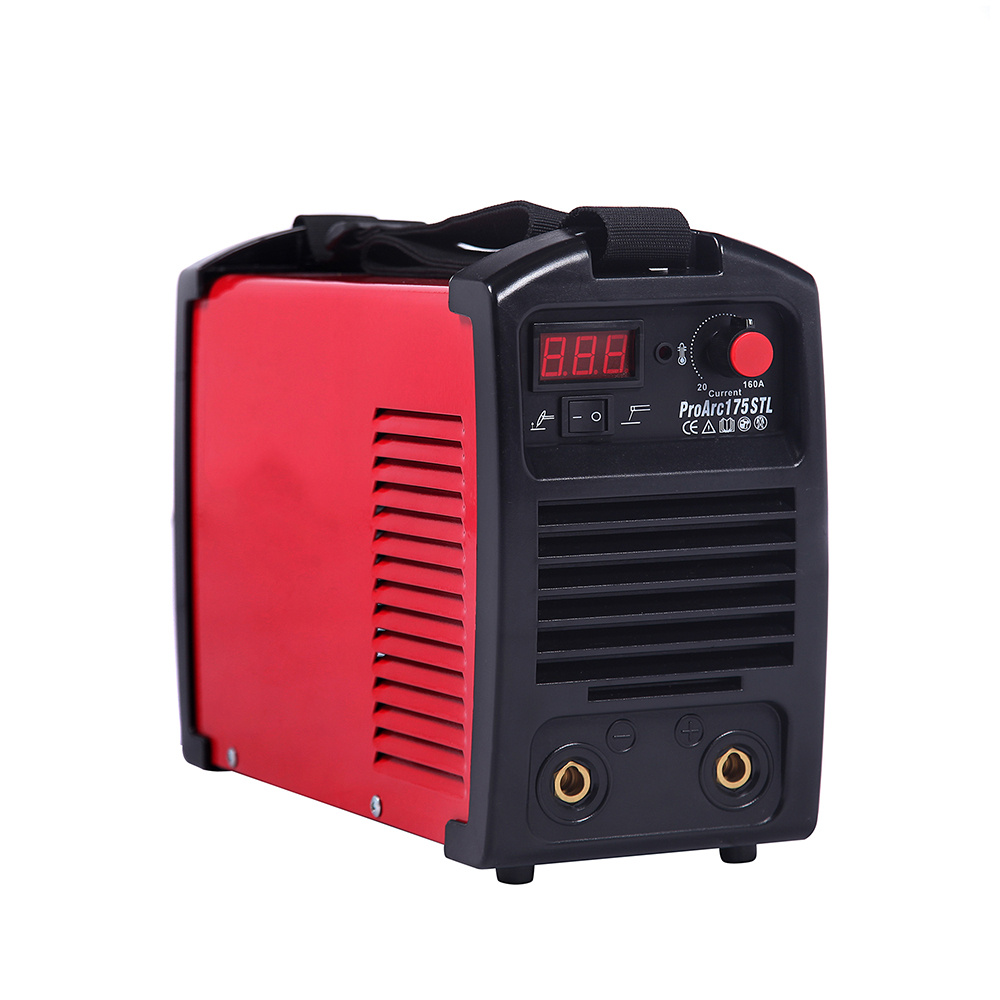

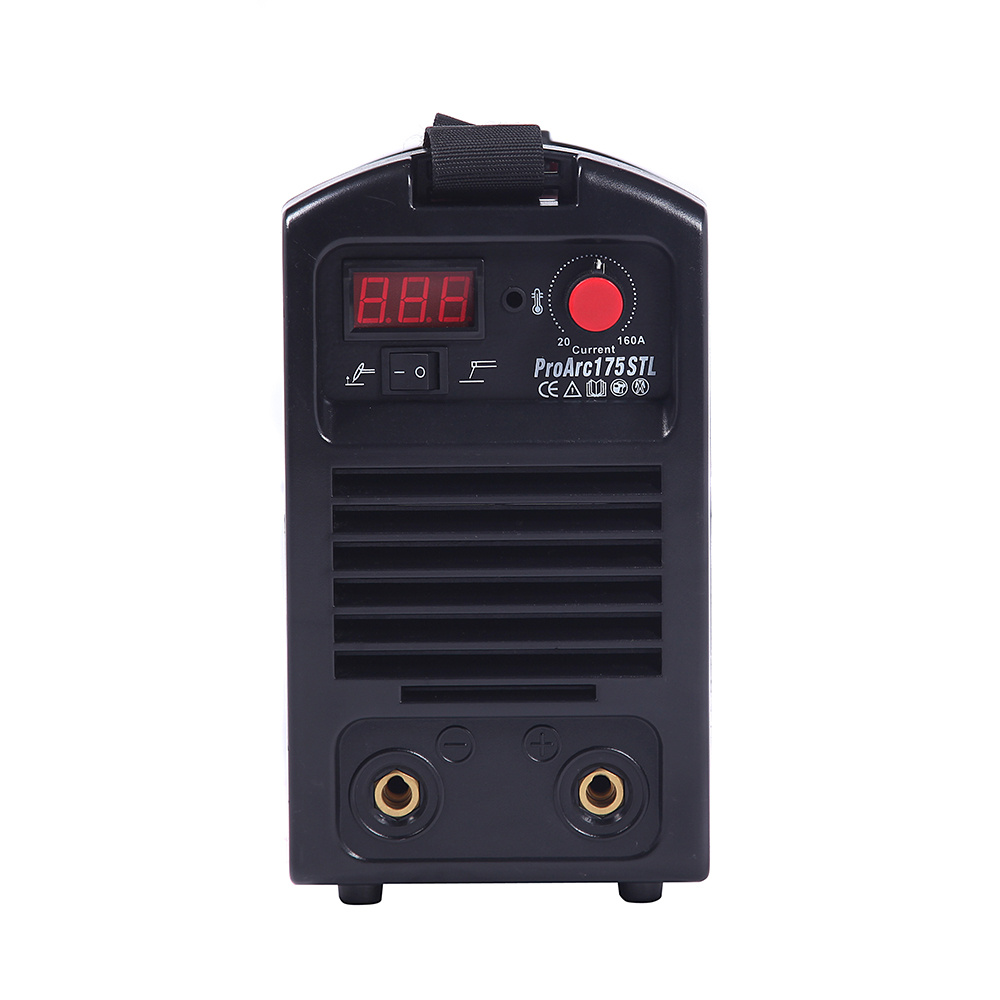

| ProArc175STL | 1*230V,50/60Hz | 4.8 | 21 | 83 | 15-160A | 35% | 4.5kg | 210*120*265 | |
| ProArc205STL | 1*230V,50/60Hz | 6 | 26 | 83 | 20-200A | 35% | 5.5kg | 290*165*265 | |
| ProArc250STL | 1*230V,50/60Hz | 9 | 39 | 85 | 20-250A | 35% | 7.5kg | 290*165*265 | |
 |
 |

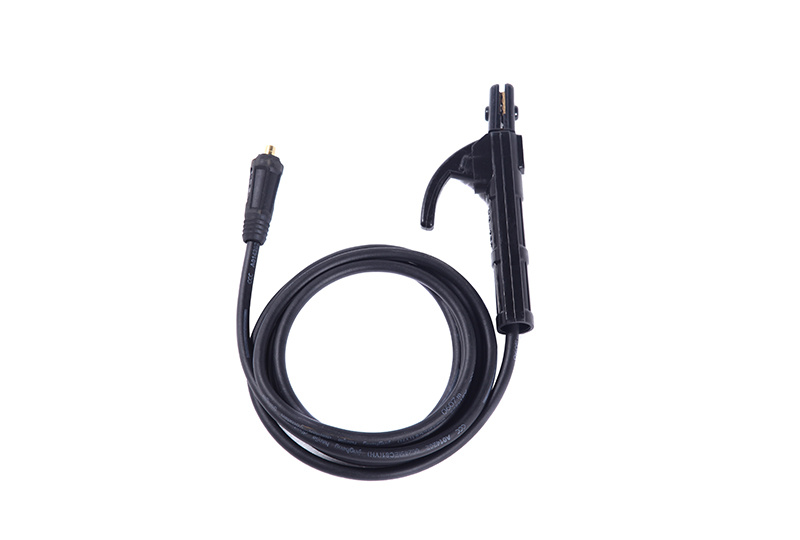

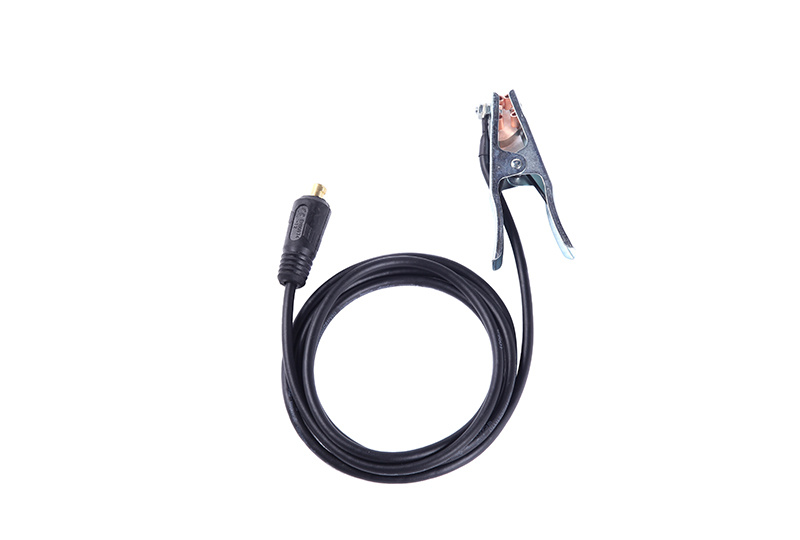

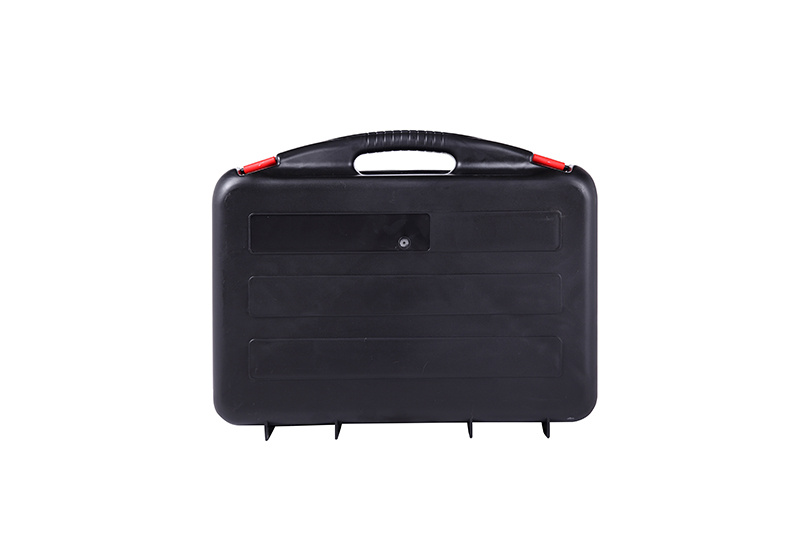

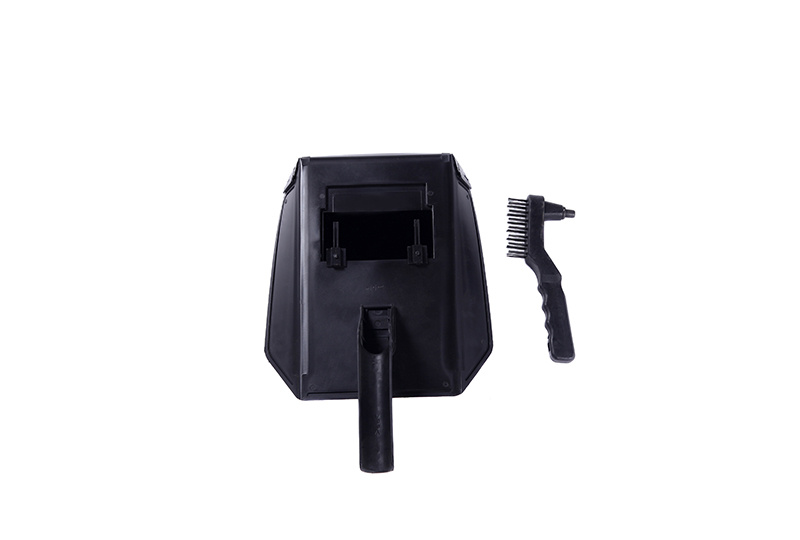

OPTIONAL ACCESSORIES
 |
 |
