■ High frequancy IGBT inverter DC MMA,Pulse ACDC TIG and CUT.
■ Lift and HF for TIG
■ Hot arc start and arc force,Anti-stick for MMA

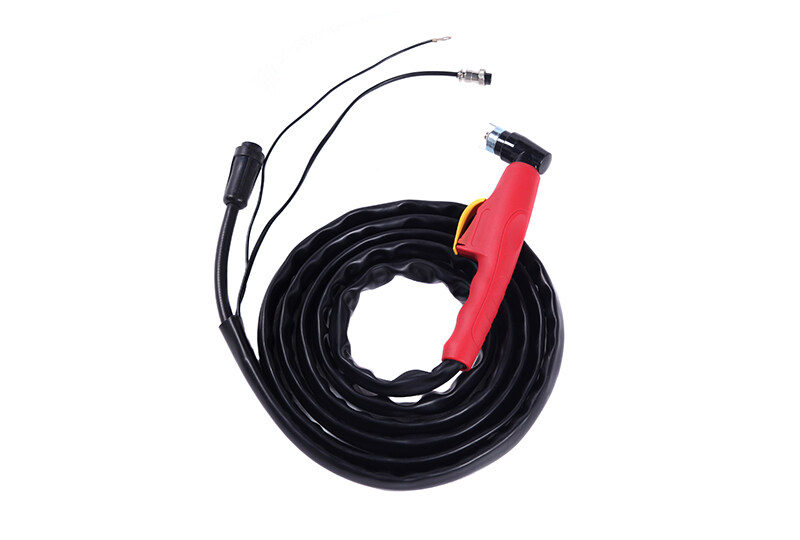

■ HF or with HF pilot arc for Plasma cutting.
■ 32 bits MCU inside

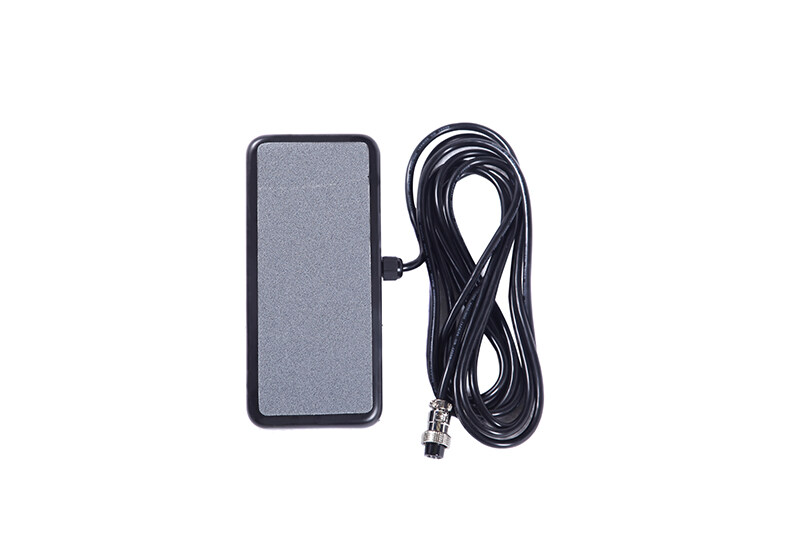

■ Foot pedal and finger amps remote control
■ 2T/4T function
■ VRD for MMA (Option).
■ PFC (option).
| Model | PowerSupply Voltage | Rate Input Capacity (KVA) | Rate Input Current | No Load Voltage | Output current Range | Duty Cycle | Weight | L*W*H(mm) | |
| PowerMaster 164 | 1*230V 50/60Hz | 6.2 | 27.1 | 90 | TIG:5-160A, M MA:5-130A CUT:20-40A | 60% | 20kg | 560*240*460 | |
| Powermaster205 | 1*230V 50/60Hz | 7.5 | 32.1 | 70 | TIG:5-200A, M MA:5-160A CUT:20-50A | 60% | 24kg | 560*240*460 | |
| Powermaster256 | 1*230V 50/60Hz | 9 | 38.3 | 70 | TIG:5-250A, M MA:10-200A CUT:20-60A | 60% | 26kg | 560*240*460 | |
 |
 |
 |
 |
 |
 |

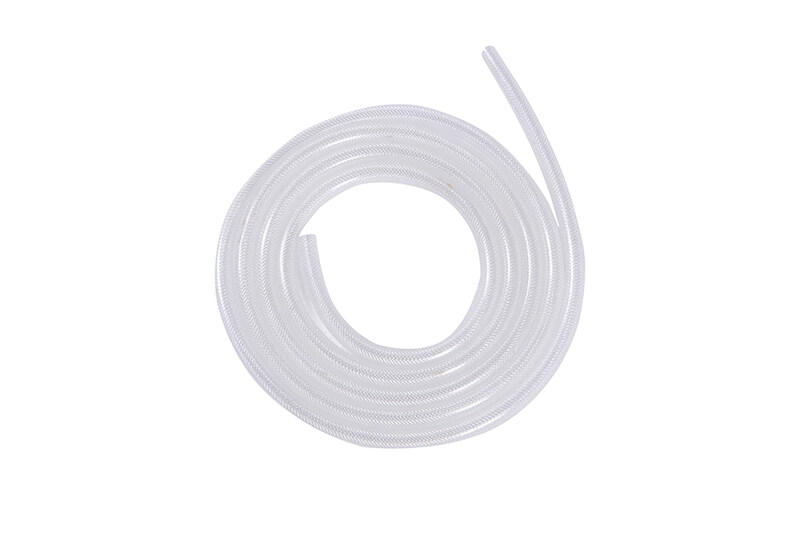

■ Water cooler
 |
 |
 |
Contact JL Industrial Supply Company Limited for High-quality Welding and Cutting Machine.
