■ Digital Control IGBT inverter DC MMA,TIG and Mig
■ Lift TIG
■ Hot arc start and arc force,Anti-stick for MMA
■ 32 bits MCU inside

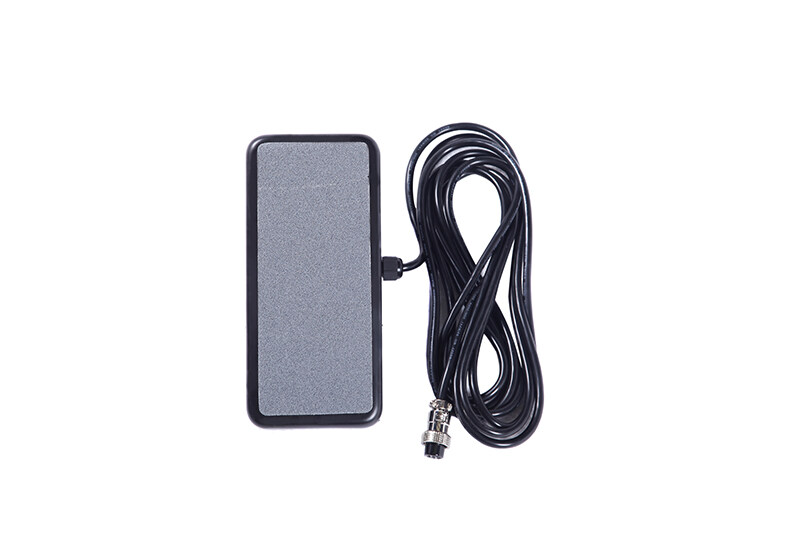

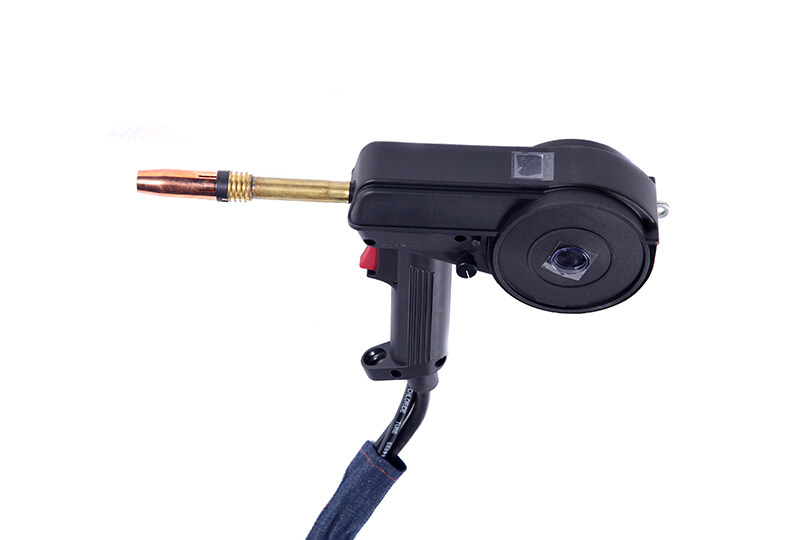

■ Foot pedal and spool gun 7pins connector
■ 2T/4T function
■ One knob adjustment
■ Two digital display windows.
■ 200mm wire spool(except 278S)
■ SYNERGIC mig
| Model | PowerSupply Voltage | Rate Input Capacity (KVA) | Rate Input Current(A) | No Load Voltage | Output current Range | Duty Cycle | Weight | L*W*H(mm) | |
| MTS218S | 1*230V 50/60Hz | 8.6 | 38 | 65 | MIG30-200A,TIG:10-200A,MMA:10-175A | 35% | 28kg | 560*240*460 | |
| MTS258S | 1*230V 50/60Hz | 10 | 45 | 60 | MIG30-250A,TIG:10-250A,MMA:10-200A | 35% | 34kg | 560*240*460 | |
| MTS278S | 1*230V 50/60Hz | 11.5 | 50 | 70 | MIG30-270A,TIG:10-270A,MMA:10-220A | 35% | 36kg | 560*240*460 | |

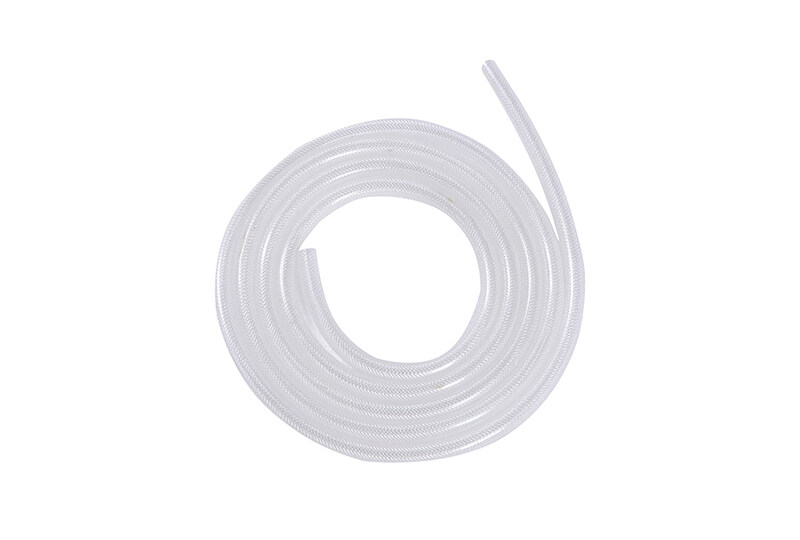

■ Gas hose 2m
 |
 |
 |
 |
 |
OPTIONAL ACCESSORIES
■ HF TIG
 |
 |
 |
Contact JL Industrial Supply Company Limited for High-quality Welding and Cutting Machine.
