■ Digital Control IGBT inverter DC MMA,pulse TIG and pulse Mig
■ Lift and HF for TIG
■ Hot arc start and arc force,Anti-stick for MMA
■ 32 bits MCU inside

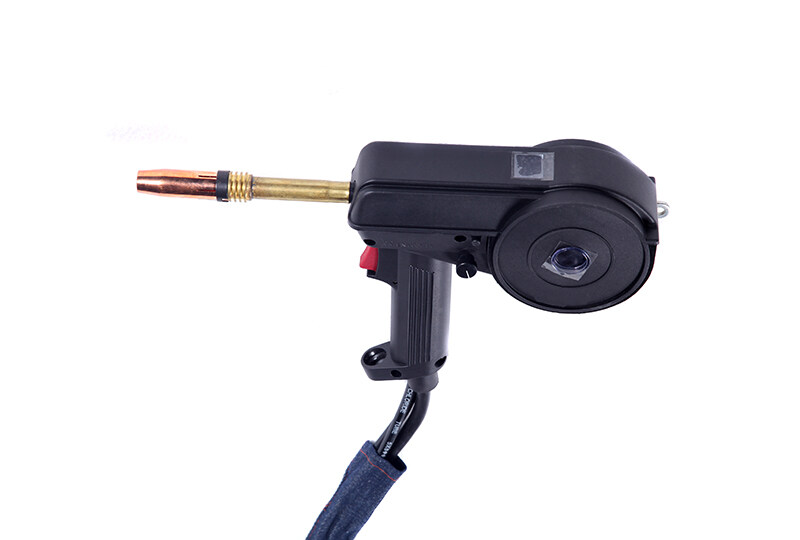

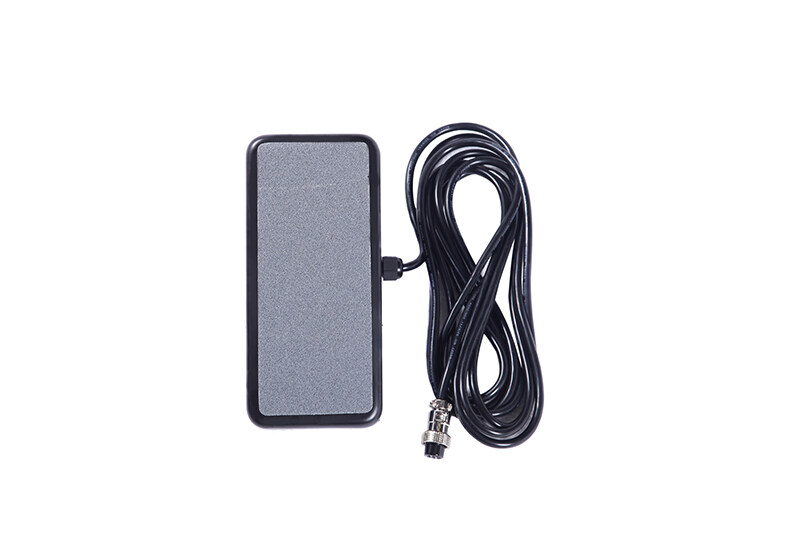

■ Foot pedal and spool gun 7pins connector
■ 2T/4T function
■ One knob adjusting
■ Two digital display windows
■ 200/300mm wire spool
■ 4rollers wire feeder
■ SYNERGIC MIG
| Model | PowerSupply Voltage | Rate Input Capacity (KVA) | Rate Input Current(A) | No Load Voltage | Output current Range | Duty Cycle | Weight | L*W*H(mm) | |
| MTS210PHF | 1*230V 50/60Hz | 8.6 | 38 | 58 | MIG30-210A,TIG:10-210A,MMA:10-175A | 50% | 32kg | 600*290*480 | |
| MTS250PHF | 1*230V 50/60Hz | 10 | 45 | 60 | MIG30-250A,TIG:10-250A,MMA:10-200A | 50% | 34kg | 600*290*480 | |
| MTS275PHF | 1*230V 50/60Hz | 10 | 50 | 70 | MIG30-275A,TIG:10-275A,MMA:10-210A | 50% | 36kg | 600*290*480 | |
 |
 |
 |
 |
 |
OPTIONAL ACCESSORIES

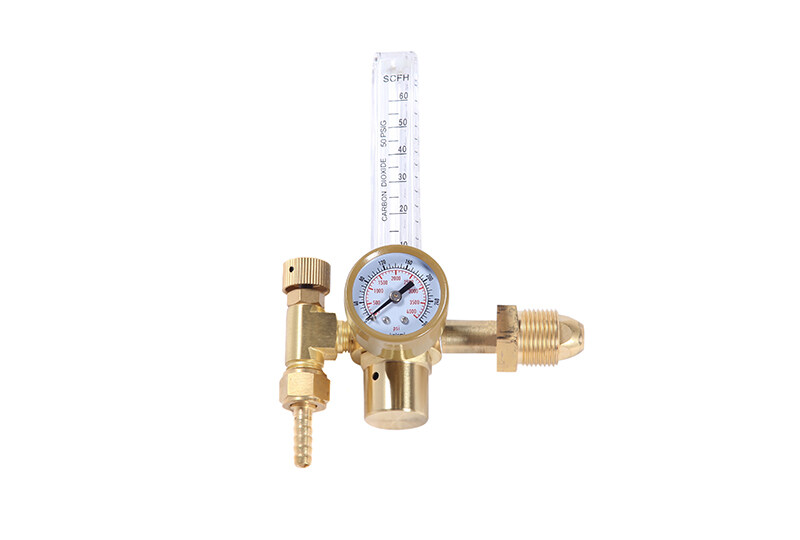

■ Regulator
 |
 |
 |
Contact JL Industrial Supply Company Limited for High-quality Welding and Cutting Machine.
