■ Digital Control IGBT inverter DC MMA,DC TIG and Mig,CUT,4IN1 multi functions
■ Lift /HF TIG, HF/no HF Pilot arc for CUT
■ Hot arc start and arc force,Anti-stick for MMA
■ 32 bits MCU inside

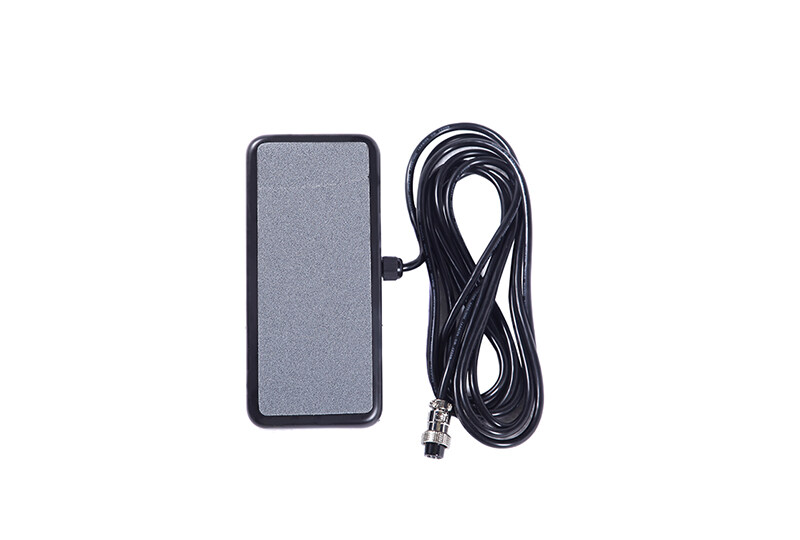

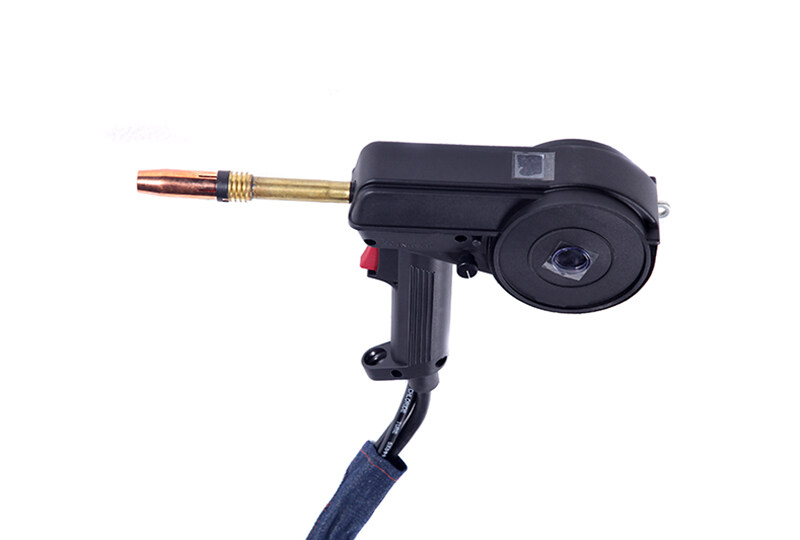

■ Foot pedal and spool gun 7pins connector
■ 2T/4T function
■ LCD screen display
■ 200/100mm wire spool
■ 2rollers wire feeder
■ Synergic(Easy/Auto)setting
| Model | PowerSupply Voltage | Rate Input Capacity (KVA) | Rate Input Current(A) | No Load Voltage | Output current Range | Max cutting thickness | Duty Cycle | Weight | L*W*H(mm) |
| MTCS200DC | 1*230V 50/60Hz | 7.5 | 38 | 65/260V | MIG30-200A,TIG:10-200A,MMA:10-175A CUT:20-40A | 16mm | 35% | 30kg | 600*290*480 |
| MTCS250DC | 1*230V 50/60Hz | 8.8 | 45 | 65/260V | MIG30-250A,TIG:10-250A,MMA:10-200A,CUT:20-50A | 25mm | 35% | 38kg | 600*290*650 |

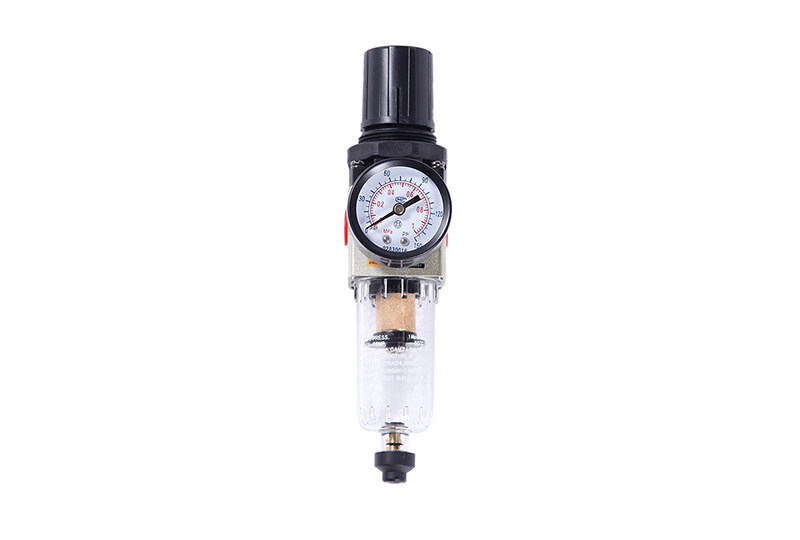

■ Air regulator
 |
 |
 |
 |
 |
 |
 |
OPTIONAL ACCESSORIES

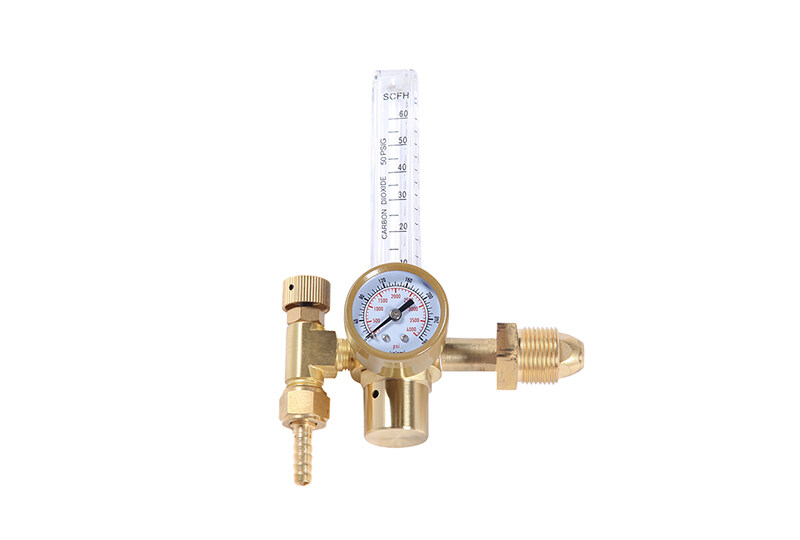

■ Regulator
 |
 |
 |
