■ IGBT Digital inverter DC MMA, DC PULSE TIG
■ Lift and HF for TIG
■ 32 bits MCU inside
■ One knob digital style operation panel.
■ Foot pedal and finger amps remote control
■ 2T/4T function
■ 10 Memories selection.
■ Hot arc start and Arc force Anti-stick for MMA
■ Can be used for E6010 rod.
| Model | PowerSupply Voltage | Rate Input Capacity (KVA) | Rate Input Current(A) | No Load Voltage | Output current Range | Duty Cycle | Weight | L*W*H(mm) | |
| DIGI-TIG DC PULS230 | 1*230V 50/60Hz | 7.6 | 33 | 70 | TIG:3-230A, MMA:10-180A | 60% | 20kg | 560*240*460 | |
| DIGI-TIG DC PULS280 | 3*400V,50/60Hz | 10 | 14 | 70 | TIG:5-280A, MMA:5-250A | 60% | 25kg | 560*240*460 | |
| DIGI-TIG DC PULS330 | 3*400V,50/60Hz | 12 | 19 | 70 | TIG:5-330A, MMA:10-270A | 60% | 28kg | 560*240*460 | |
| DIGI-TIG DC PULS400 | 3*400V,50/60Hz | 12 | 27 | 70 | TIG:10-400A, MMA:20-315A | 60% | 30kg | 560*240*460 | |
 |
 |
 |
 |

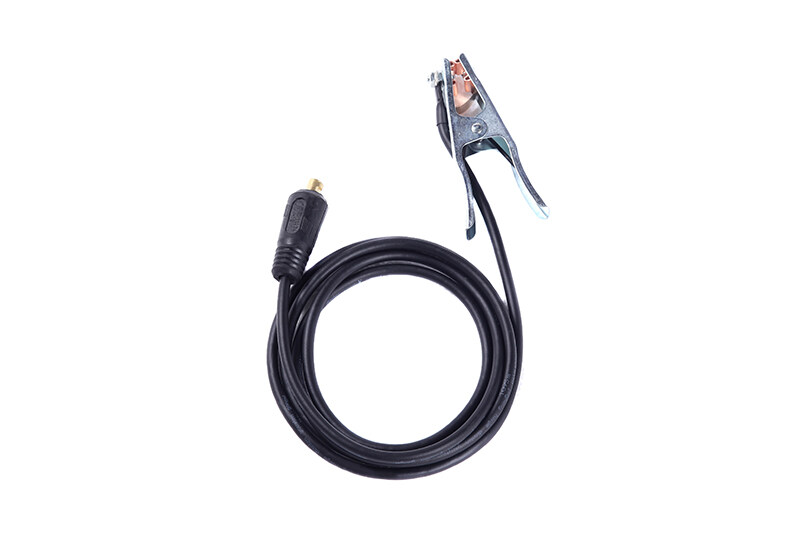

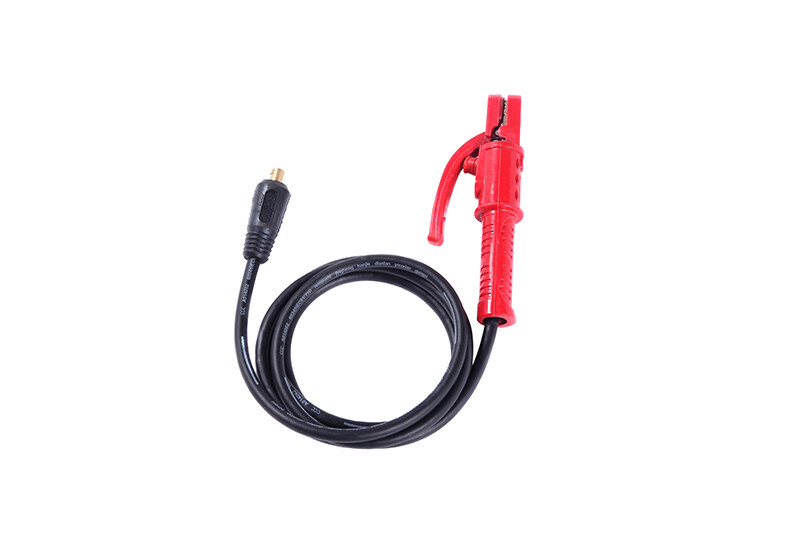

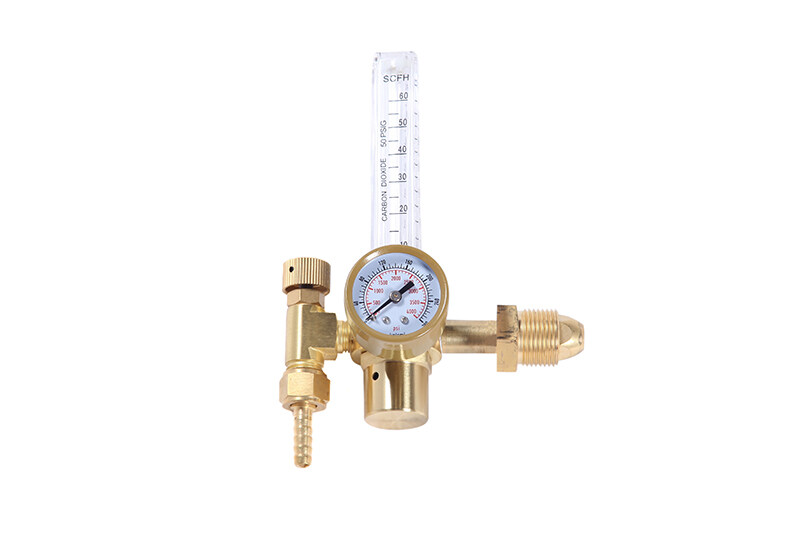

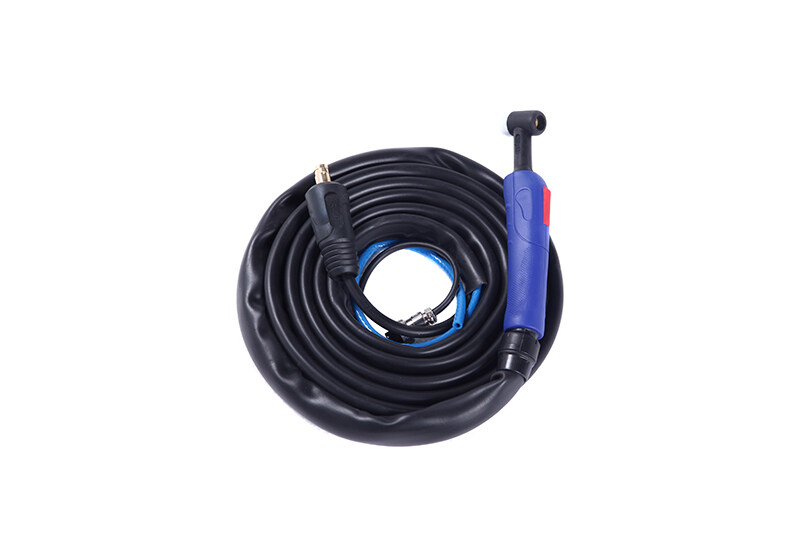

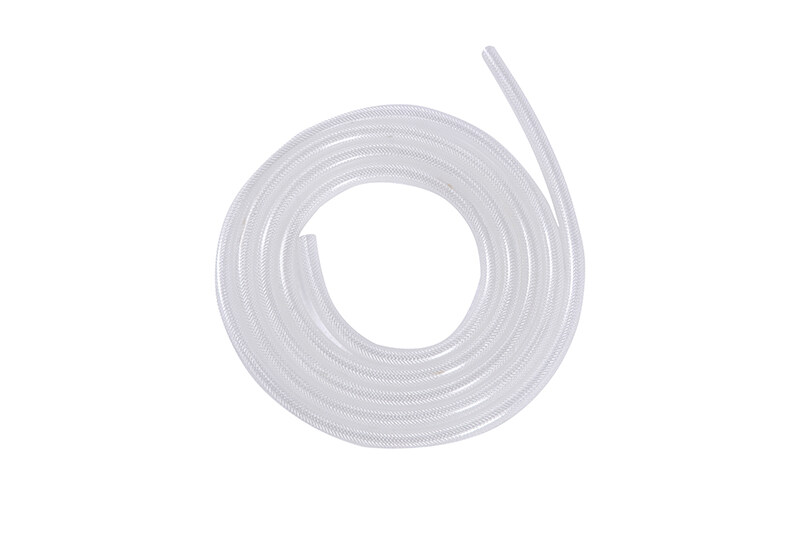

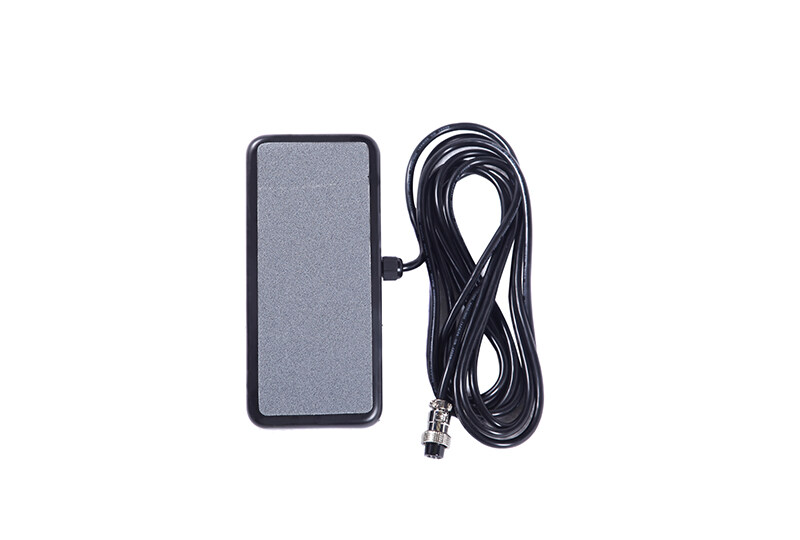

OPTIONAL ACCESSORIES
 |
 |
 |
Contact JL Industrial Supply Company Limited for High-quality Welding and Cutting Machine.
