■ Digital Control IGBT inverter DC MMA,Pulse ACDC TIG and CUT.
■ Lift and HF for TIG
■ Hot arc start and arc force,Anti-stick for MMA
■ HF or with HF pilot arc for Plasma cutting.
■ 32 bits MCU inside

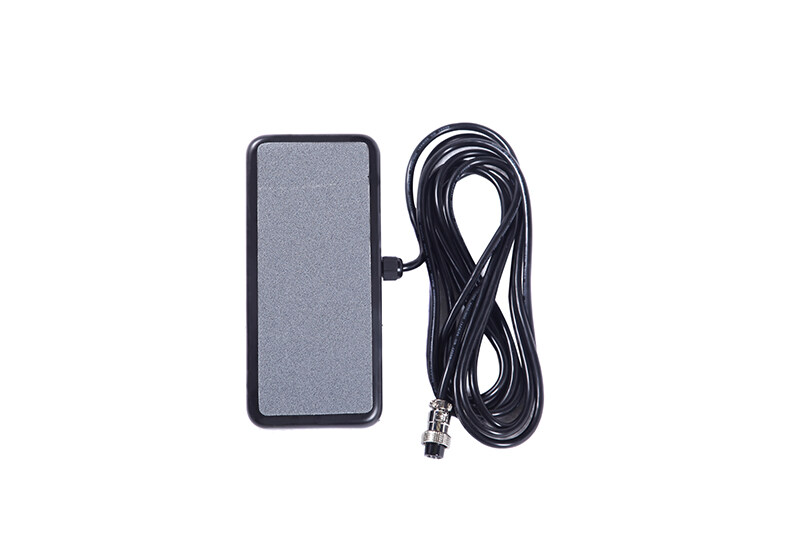

■ Foot pedal
■ 2T/4T function
■ Easy operation and normal selection for tig parameters..
■ AC and DC mix pulse TIG.
■ Advanced square,soft square,triangular,sine, four AC wave for selection.
■ VRD for MMA (Option).
■ PFC (option).
■ 10memories for selection.
| Model | PowerSupply Voltage | Rate Input Capacity (KVA) | Rate Input Current(A) | No Load Voltage | Output current Range | Duty Cycle | Weight | L*W*H(mm) | |
| DIGI-MULTI160ACDCPULS | 1*230V 50/60Hz | 6.8 | 29 | 80 | TIG:3-160A, AC:5-160A,MMA:10-125A CUT:20-40A | 60% | 25kg | 560*240*460 | |
| DIGI-MULTI200ACDCPULS | 1*230V 50/60Hz | 7.5 | 32.1 | 70 | TIG:3-200A,AC:5-200A,MMA:10-160A CUT:20-50A | 60% | 28kg | 560*240*460 | |
| DIGI-MULTI250ACDCPULS | 1*230V 50/60Hz | 10 | 41 | 80 | TIG:5-250A, AC:10-250A MMA:10-200A CUT:20-60A | 60% | 30kg | 560*240*460 | |
 |
 |
 |
 |
 |
 |
OPTIONAL ACCESSORIES

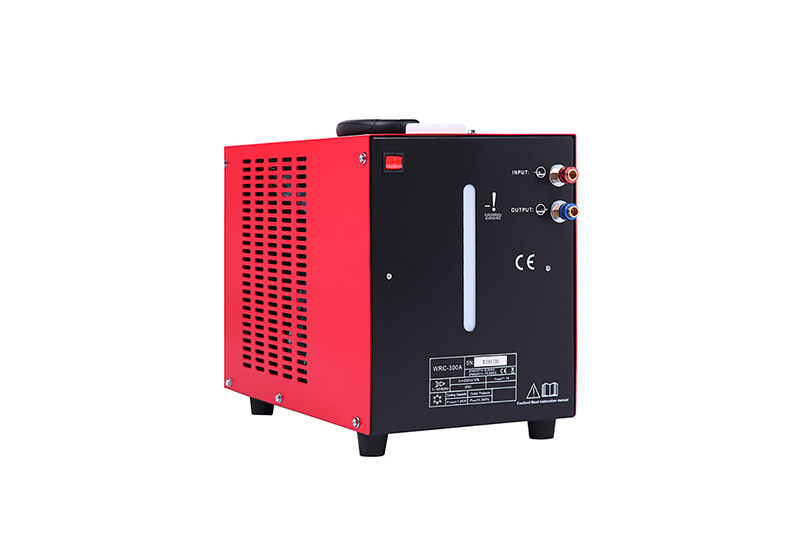

■ Water cooler
 |
 |
 |
 |
