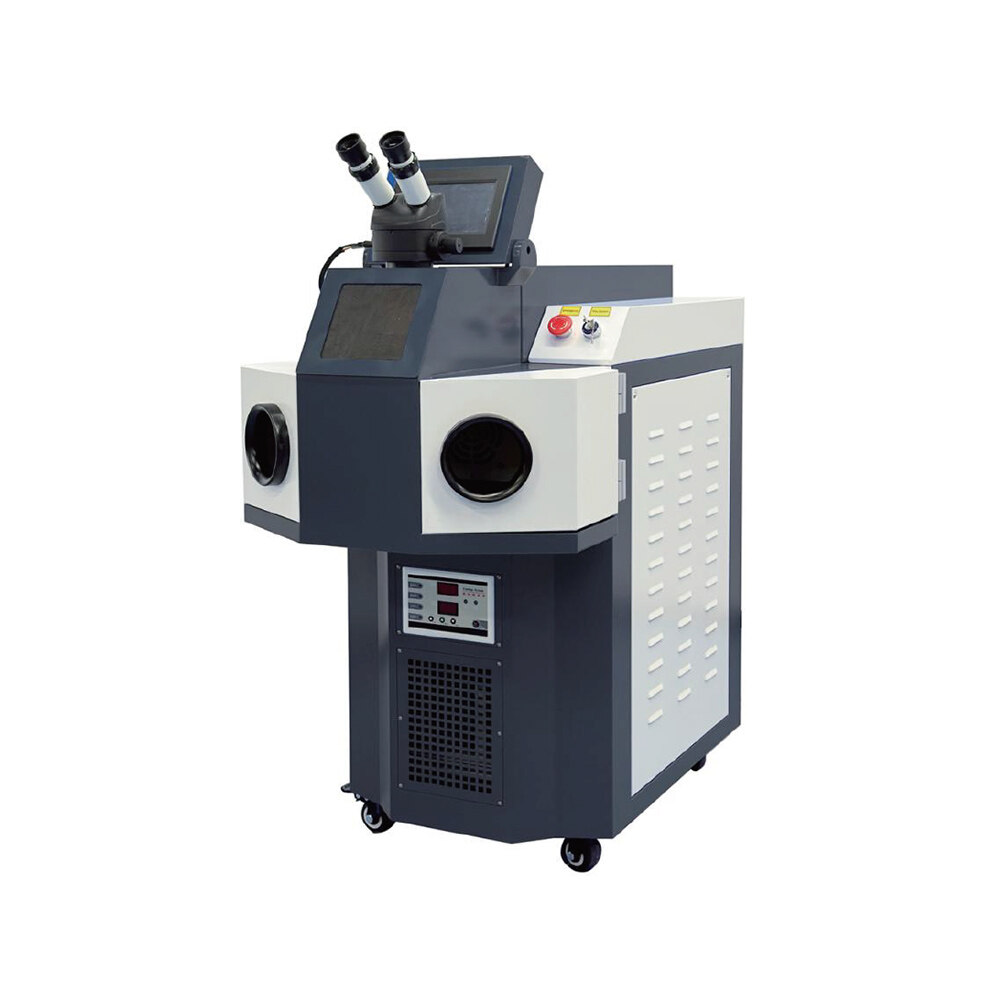

■ YAG pulse Laser source
■ 1.5P Water chiller cooling
■ Table adjusting length:125*100mm
■ Table load-bearing:200kgs(Max)
■ Laser spot and pulse width canbe adjusting by the remote unit.
■ The welding temperature canbe controlled by laser spot(dia)and pulse frequency and width.
■ Every easy Alignmeng welding seam by Microscope and LCD screen.

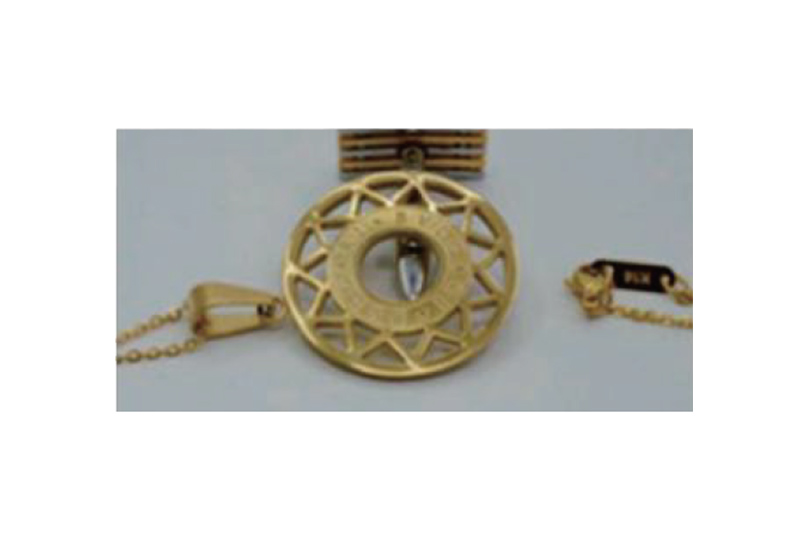

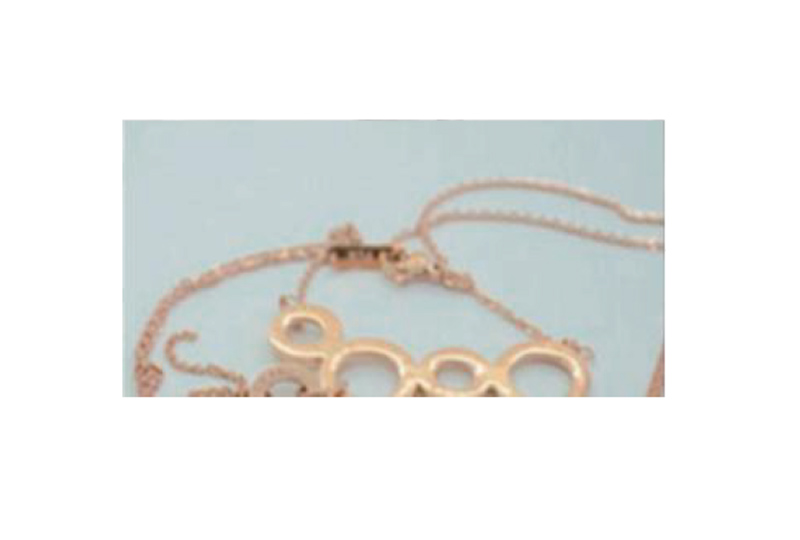

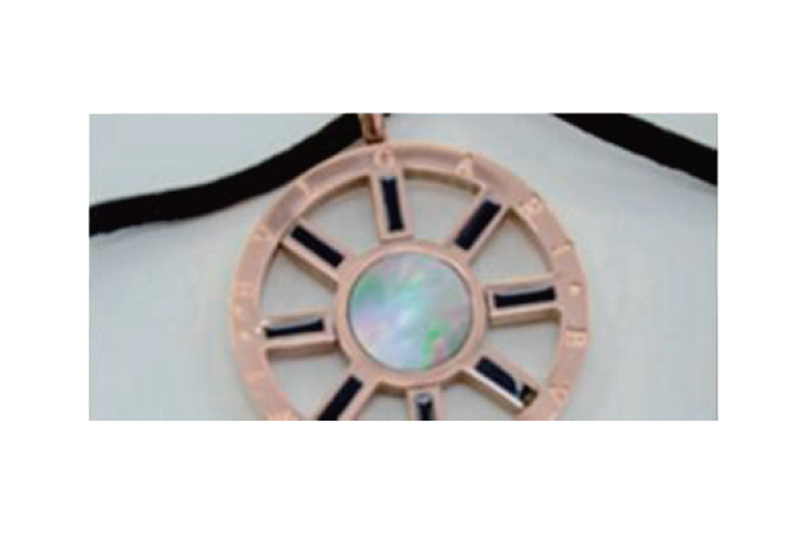

■ Suitable for Metal Jewerly and Mould welding.
| Modèle | Alimentation électrique | Capacité d'entrée nominale (KVA) | Courant d'entrée nominal (A) | Laser Power | Laser Frequancy | Laser pulse Width(ms) | Spot Adjustment Range | Laser wave length | Poids | L*l*H (mm) |
| FR-300WB | 1*220V 50/60Hz | 8.7 | 39 | 300 W | 0-50Hz | 0-20 | 0.3-2mm | 1064nm | 853kg | 800*500*620 |
| FR-400WB | 1*220V 50/60Hz | 8.8 | 40 | 400W | 0-50Hz | 0-20 | 0.3-2mm | 1064nm | 95kg | 360*550*1170 |

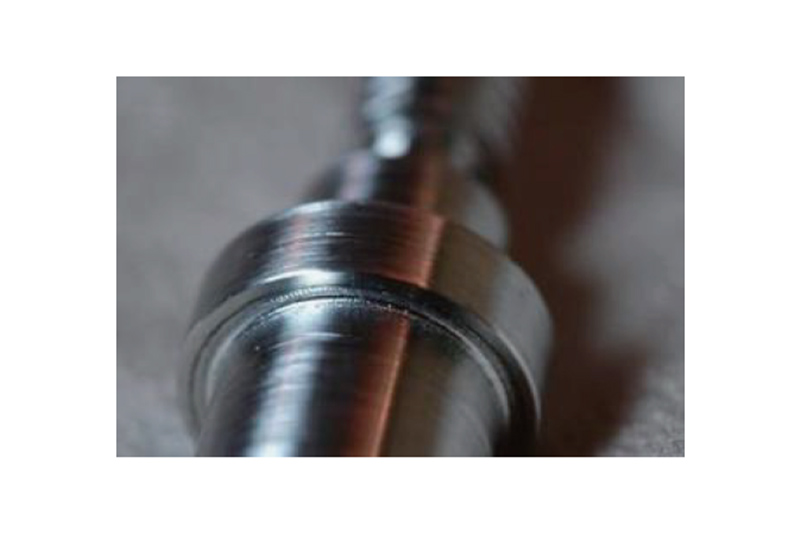

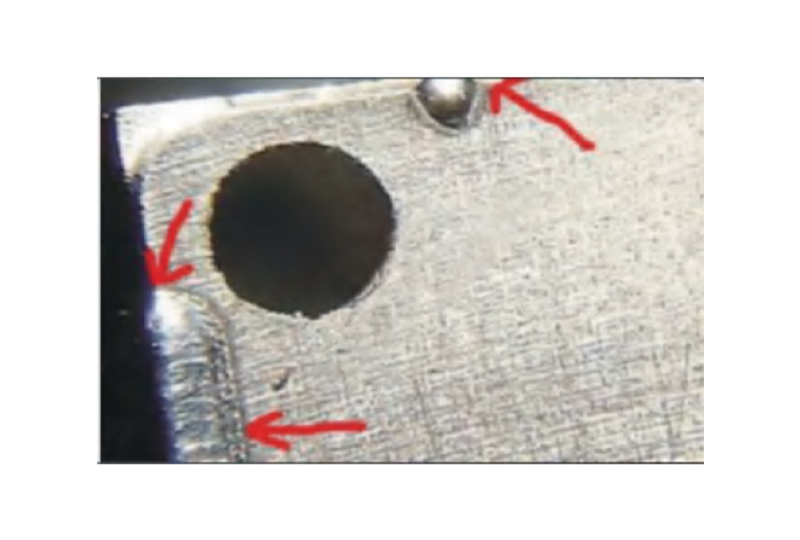

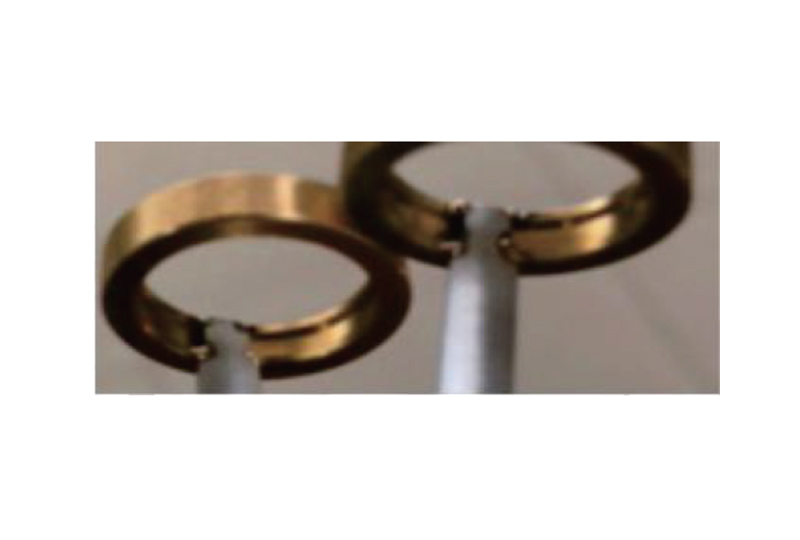

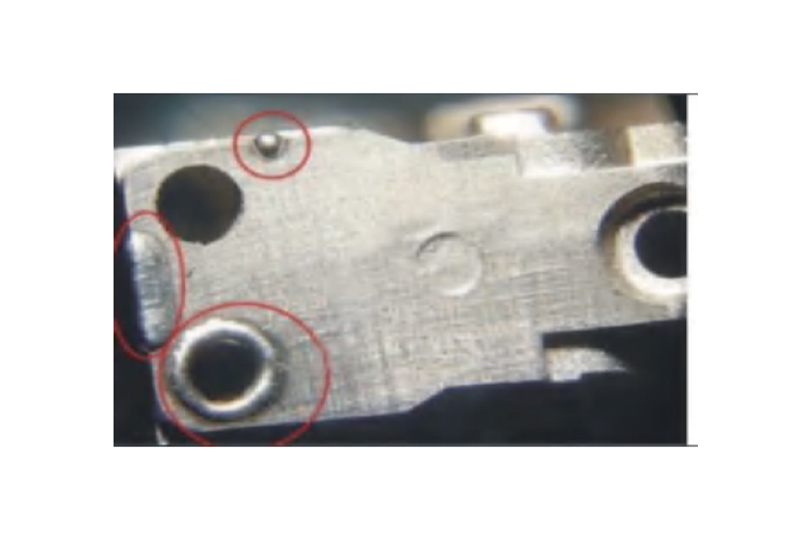

APPLICATION
 |
 |
 |
 |
 |
 |
 |
 |
 |

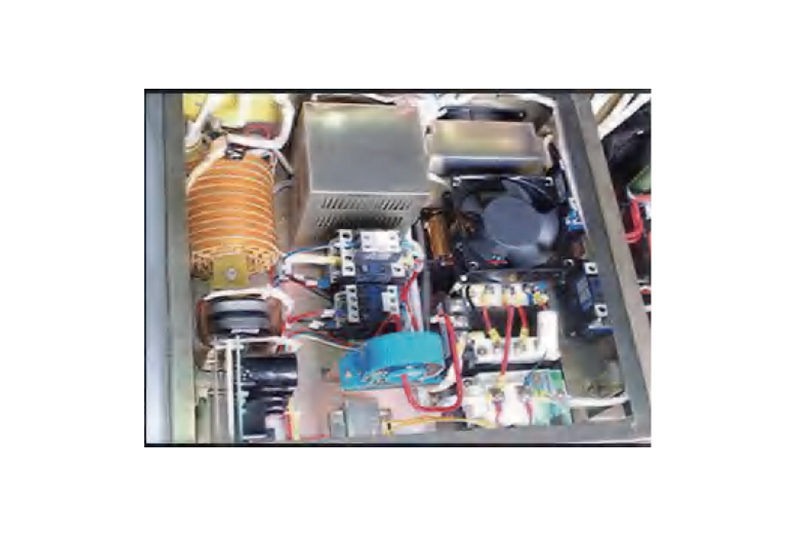

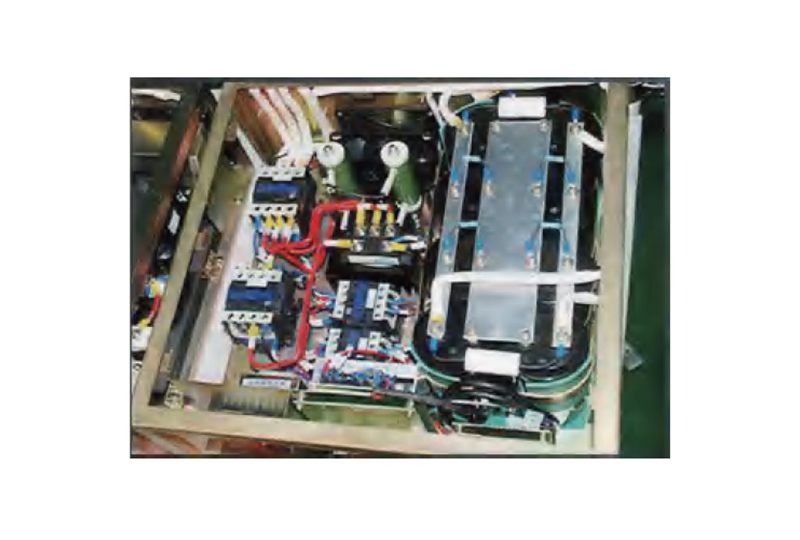

CONTROL SYSTEM
 |
 |
|

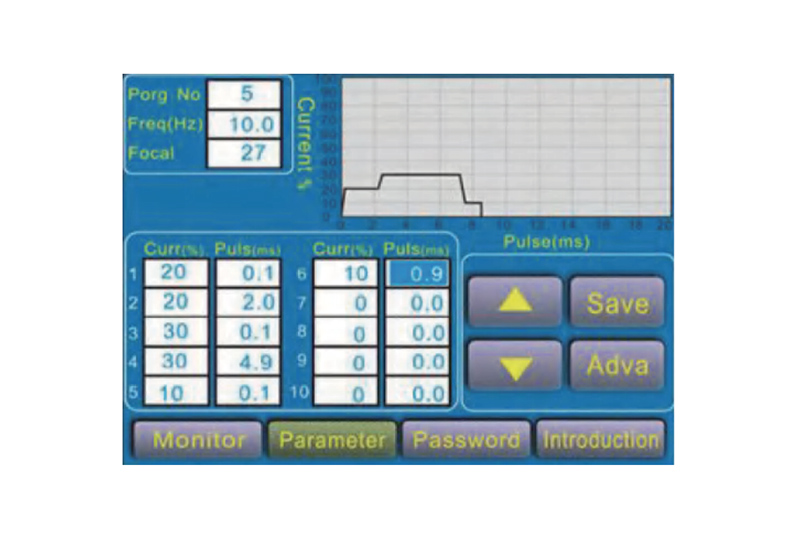

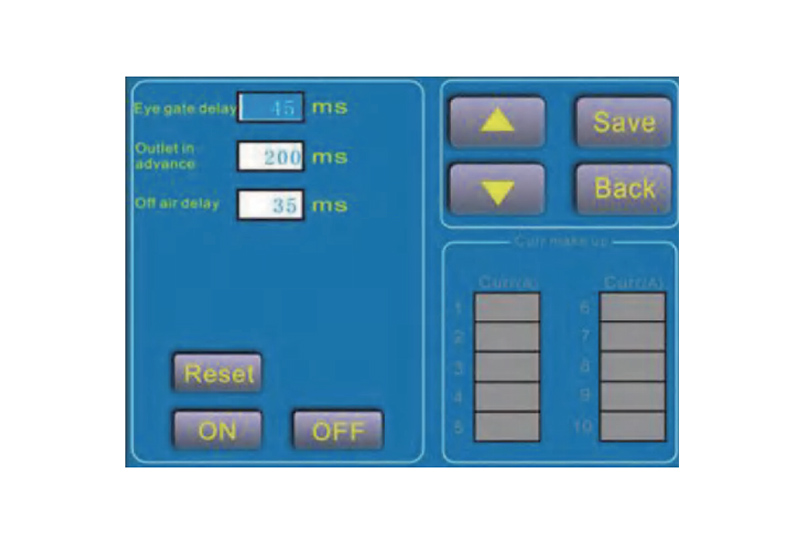

SOFTWARE
 |
 |
